適用范圍：

Scope of application:

用于處理廢舊電路板、覆銅板、線路板及邊角料等物料中的金屬與非金屬的分離，回收其中的金屬和樹脂粉。

It is used for separating metals and non-metals in materials, such as waste circuit boards, CCL, circuit boards, bits and pieces, and recovering metals and resin powder in those materials.

設備特點：

Features of equipment:

1.整套流水線采用PLC智能化編程自動控制與人機界面觸摸屏，使整條生產線均勻進料，協調工作。

1. The entire assembly line uses the PLC intelligent programming automatic control and man-machine interface touch screen, so that the even feeding of the entire production line and coordinated work can be realized.

2.結構緊湊，布局合理，性能穩定，粉碎設備降噪處理。

2. Compact structure, reasonable layout, stable performance, noise reduction treatment of the crushing equipment.

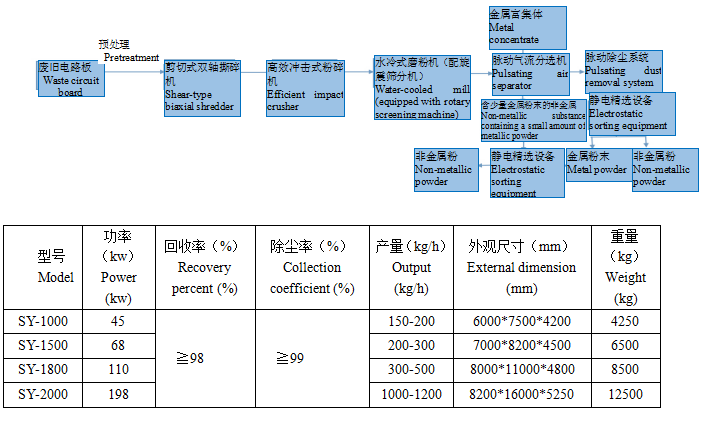

3.粉碎部分采用撕碎、破碎、粉碎工藝，在粉碎室外部與內部采用循環水降溫。

3. The crushing part uses shredding, smashing and crushing processes, and circulating water cooling is used inside and outside the crushing chamber.

4.采用負壓上料系統與脈沖除塵系統，凈化了工作環境。

4. Use the negative pressure feeding system and pulse dust removal system to purify the working environment.

5.分選部分采用比重分選與靜電精選相結合，使金屬回收率高可以達到99%以上。

5. The sorting part adopts the proportion sorting combined with the static careful selection, so that the metal recovery rate can reach up to more than 99%.
